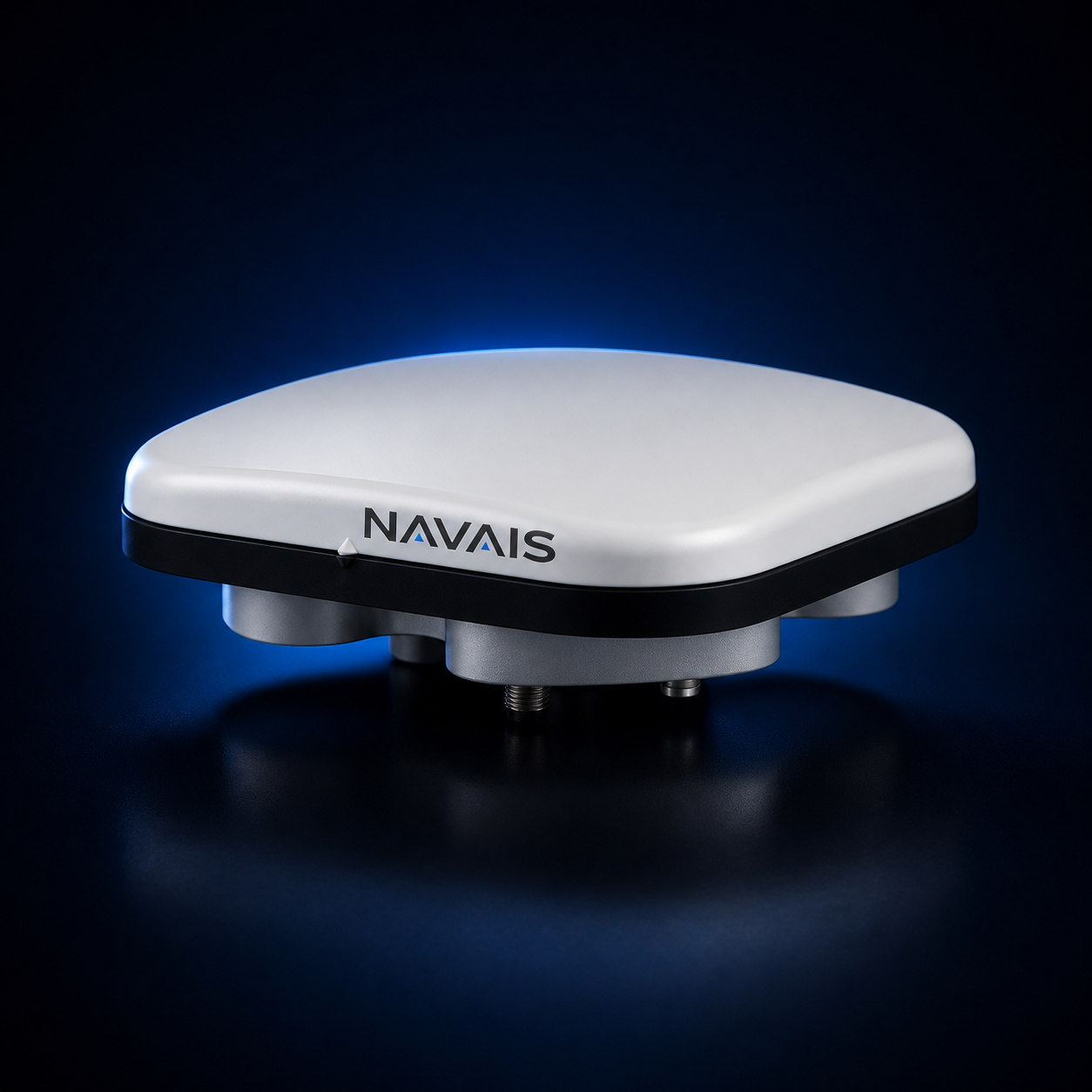

The NAVAIS NS-200 is an integrated CRPA (Controlled Reception Pattern Antenna) GNSS anti-jamming system designed for mission-critical positioning and navigation in interference-prone environments. Its multi-element adaptive architecture detects and suppresses RF interference while maintaining dual-frequency GNSS signal availability.
Unlike a conventional GNSS antenna, the NS-200 applies real-time anti-interference processing to broadband, narrowband, multi-tone, tone, sweep, pulse and continuous-wave interference. It provides conditioned high-precision signals to compatible GNSS receivers.
Key Features
- Advanced CRPA adaptive anti-jamming technology
- Multi-element antenna and real-time interference suppression
- B1/L1/E1 and B2a/L5/E5a dual-frequency processing
- Optional L2/B3 configuration
- Suppresses broadband, narrowband, multi-tone, tone, sweep and pulse interference
- Single-interference suppression ≥110 dB
- Three-interference suppression ≥95 dB
- Compact rugged enclosure for professional deployment
Supported Bands and Processing
| Band Group | Reference Capability |
|---|---|
| B1 / L1 / E1 | 1568 ±10 MHz receive bandwidth |
| B2a / L5 / E5a | 1176 ±10 MHz receive bandwidth |
| Optional signals | L2 / B3, subject to configuration and availability |
| Processing | Dual-frequency high-precision anti-interference |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NS-200 |
| Product Type | Integrated CRPA GNSS anti-jamming antenna |
| Primary Receive Band | B1/L1/E1 at 1568 ±10 MHz |
| Secondary Receive Band | B2a/L5/E5a at 1176 ±10 MHz |
| Optional Frequency Support | L2/B3 |
| Anti-Single-Interference | ≥110 dB |
| Anti-Three-Interference | ≥95 dB |
| Antenna Output Power | −50 to −70 dBm |
| Input Voltage | +9 V to +24 V; +24 V default |
| Power Consumption | ≤16 W |
| RF Output | SMA-K |
| Control / Power Interface | J30J-9ZK |
| Dimensions | 130 × 130 × 32 mm |
| Weight | 670 g |
| Colour | Grey |
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −55°C to +85°C |
Benefits of CRPA Technology
Superior Anti-Jamming Protection
Adaptive processing identifies interference and suppresses energy arriving from jammer directions.
Improved Positioning Availability
Helps maintain satellite tracking in environments where conventional GNSS antennas may lose availability.
Enhanced Navigation Reliability
Supports stable dual-frequency GNSS operation for critical professional applications.
Congested RF Environment Operation
Designed for sites near communications equipment and other potential interference sources.
High-Precision System Support
Provides conditioned GNSS signals for RTK, PPK, timing, testing and precision navigation workflows.
Typical Applications
- Critical infrastructure and GNSS reference stations
- Surveying and high-precision positioning networks
- Marine navigation and autonomous systems
- Test and evaluation facilities
- Aviation ground systems and authorized government projects
Important Notice
Restricted Commercial Product. The NAVAIS NS-200 is intended for commercial, industrial, scientific and authorized professional applications only. Import, export and sale may be subject to local regulations and approval requirements. An End User Certificate (EUC) and end-user declaration are required from the final customer before supply. Availability is subject to applicable trade, export-control and regulatory requirements.
