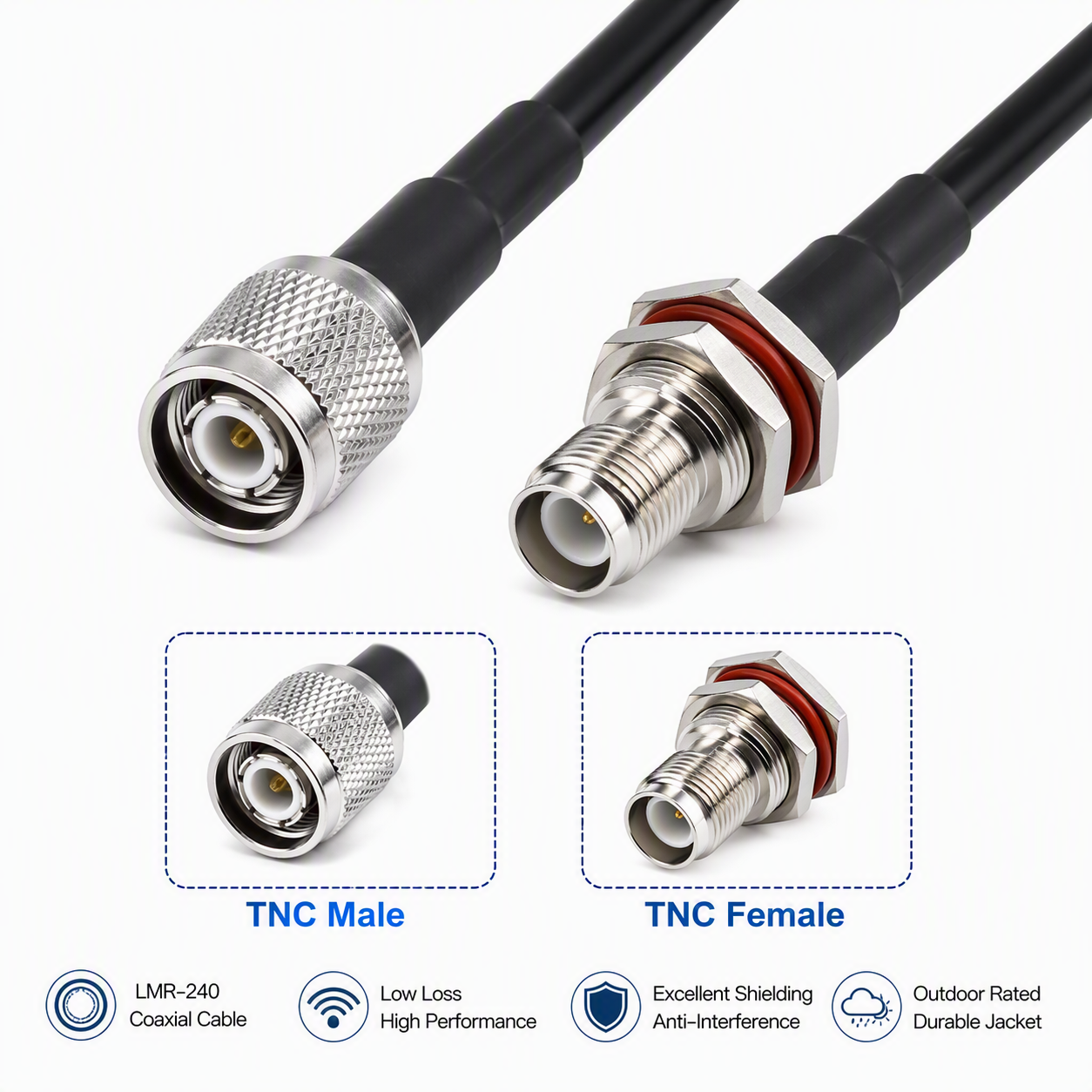

The NAVAIS LMR-240 GNSS Jack-Up Cable Assembly is a high-quality, low-loss RF cable designed to connect GNSS antennas to NAVAIS GNSS receivers while maintaining excellent signal integrity. Constructed using premium LMR-240 coaxial cable and fitted with TNC Male to TNC Female bulkhead connectors, it provides a durable and flexible solution for short to medium-distance GNSS installations.
Available in lengths from 1 m to 5 m, the cable is ideal for GNSS surveying systems, RTK rovers, marine positioning equipment, vehicle-mounted systems and temporary field deployments where flexibility and low loss are essential.
Key Features
- Premium LMR-240 low-loss coaxial cable
- Compatible with NAVAIS GNSS receivers and GNSS antennas
- TNC Male to TNC Female bulkhead connector configuration
- Available lengths: 1 m, 2 m, 3 m, 4 m and 5 m
- Flexible and lightweight for field deployment
- Excellent shielding against RF and electromagnetic interference
- Durable outdoor-rated cable construction
- Suitable for GPS, GLONASS, Galileo, BeiDou and RTK applications
Technical Specifications
| Specification | Description |
|---|---|
| Cable Type | LMR-240 low-loss coaxial cable |
| Connector A | TNC Male |
| Connector B | TNC Female bulkhead |
| Available Lengths | 1 m, 2 m, 3 m, 4 m, 5 m |
| Impedance | 50 ohms |
| Outer Diameter | 6.1 mm (0.240 in) |
| Shielding | Foil and braided shield |
| Jacket Material | UV-resistant polyethylene |
| Frequency Range | Suitable for GNSS frequency bands |
| Application | GNSS antenna extension and receiver connection |
Benefits for GNSS Applications
Low Signal Attenuation
LMR-240 provides significantly lower signal loss than conventional coaxial cables, helping preserve weak satellite signals between the GNSS antenna and receiver.
Improved Positioning Accuracy
Maintains high-quality GNSS signal transmission, supporting reliable RTK fixes and centimetre-level positioning performance.
Flexible Installation
The smaller cable diameter and lightweight construction make it easier to route within vehicles, equipment enclosures, survey poles and monitoring stations.
Excellent Noise Immunity
Foil and braided shielding helps protect GNSS signals from interference generated by radios, cellular devices, power equipment and other RF sources.
Rugged Outdoor Performance
The UV-resistant jacket supports moisture exposure and demanding field conditions.
